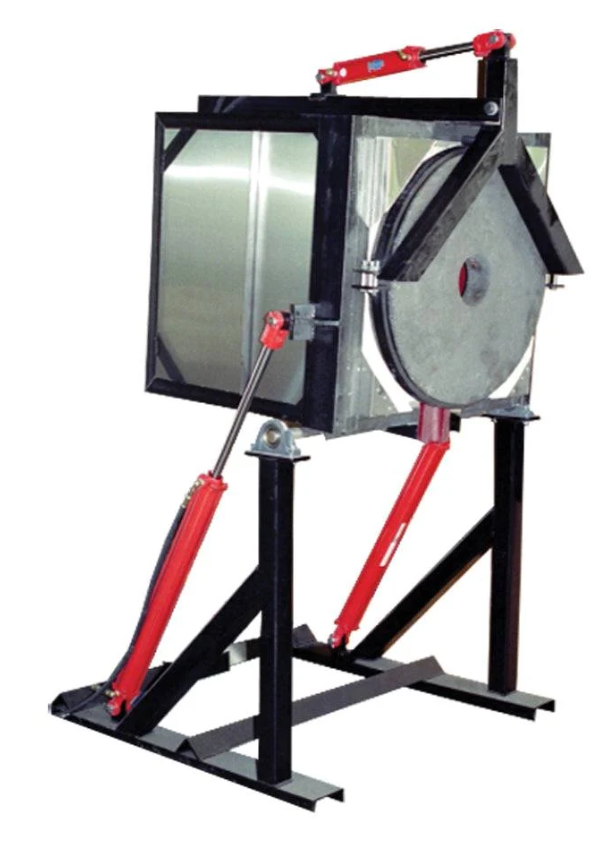

ProFire TL-400 Tilting Electric Crucible Furnace – 1,200 lb Red Brass Capacity

The ProFire TL-400 Tilting Electric Crucible Furnace is a heavy-duty industrial melting furnace designed for foundries, manufacturing facilities, metalworking operations, refining facilities, and other high-volume non-ferrous metal melting applications. Featuring a massive #400 crucible, an approximate 1,200 lb red brass capacity, and a maximum operating temperature of 2300°F, the TL-400 is built for demanding production environments where substantial melting capacity and controlled pouring are required.

Equipped with automatic temperature controls and a digital readout, the ProFire TL-400 allows the operator to select and monitor the desired operating temperature. The furnace automatically maintains the operator-selected temperature, providing consistent temperature management throughout the melting process.

The furnace utilizes a heavy-wall #400 clay-graphite crucible with an integrated pouring spout. An insulating firebrick lining helps maximize heat retention during operation, while its rugged construction is designed for long service life in professional and industrial environments.

Hydraulic Tilting & Controlled Pouring

The ProFire TL-400 is specifically designed to handle the challenges associated with pouring exceptionally large quantities of molten metal. A hydraulic lift system is included as standard equipment, providing controlled furnace movement during the pouring process.

The tilting configuration allows molten metal to be poured directly from the crucible without requiring manual removal of the large, heavy crucible. A backing winch provides additional control for precise and safe movement during pouring.

A vented lid provides convenient access to the crucible and securely latches in the raised position during loading and operation.

Key Features

• Approximate 1,200 lb Red Brass Capacity
• Maximum Temperature: Up to 2300°F
• #400 Crucible: Heavy-wall clay-graphite construction with integrated pouring spout
• Automatic Temperature Control: Maintains the temperature selected by the operator
• Digital Temperature Readout: Provides convenient monitoring during operation
• Tilting Furnace Design: Enables controlled pouring directly from the furnace
• Hydraulic Lift System: Standard equipment on the TL-400
• Backing Winch: Provides additional control during tilting and pouring
• Vented Latching Lid: Securely latches in the raised position for convenient crucible access
• Insulating Firebrick Lining: Helps maximize heat retention
• Heavy-Duty Construction: Designed for demanding professional and industrial environments
• Electric Heating: Provides controlled high-temperature operation without a fuel-fired burner system
• Made in the USA

Specifications

Industrial High-Capacity Metal Melting

With an approximate 1,200 lb red brass capacity, the ProFire TL-400 provides the substantial melt volume required for industrial foundry and production environments. Its combination of a #400 crucible, 2300°F maximum temperature, automatic temperature regulation, hydraulic tilting system, backing winch, and heat-retaining firebrick insulation provides a capable solution for large-volume metal melting and pouring.

The hydraulic tilting system helps provide controlled movement during pouring, while the heavy-wall clay-graphite crucible and integrated spout are designed to accommodate the demands associated with large quantities of molten metal.

Metal capacity will vary depending on the alloy and its density. The stated 1,200 lb capacity is based specifically on red brass.

Made to Order & Freight Shipping

The ProFire TL-400 is made to order. Please allow an approximate 1–2 week lead time for production.
