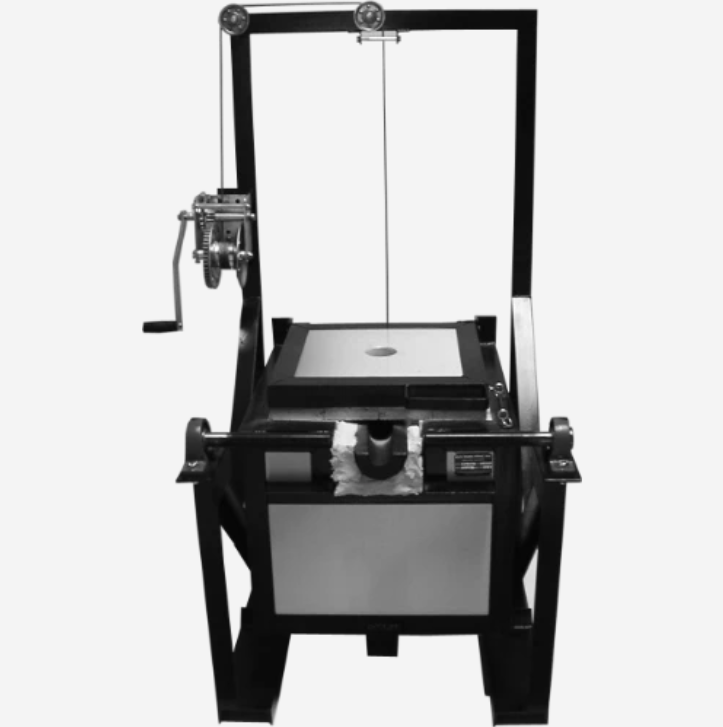

ProFire TL-300 Tilting Electric Crucible Furnace – 1,000 lb Red Brass Capacity

The ProFire TL-300 Tilting Electric Crucible Furnace is an industrial, high-capacity electric melting furnace engineered for foundries, metalworking facilities, refining operations, manufacturing environments, and other large-volume non-ferrous metal melting applications. Utilizing a massive #300 crucible with an approximate 1,000 lb red brass capacity, the TL-300 is designed for operations requiring substantial melt volumes and controlled pouring.

Equipped with automatic temperature controls and a digital readout, the ProFire TL-300 allows the operator to select the desired operating temperature while the control system maintains the set point. This provides consistent temperature management throughout large melting operations.

The furnace utilizes a heavy-wall clay-graphite #300 crucible with an integrated pouring spout. The stated 1,000 lb capacity is based on red brass; actual capacity will vary depending on the density and type of metal being melted.

Controlled Tilting & Pouring

Handling large quantities of molten metal requires a controlled pouring system. The ProFire TL-300 incorporates a tilting furnace design with a backing winch, providing precise control over furnace movement during pouring.

This design allows molten metal to be poured directly from the furnace without requiring operators to manually remove the extremely large crucible.

A vented lid provides convenient crucible access and securely latches in the raised position during loading and operation.

Key Features

• Approximate 1,000 lb Red Brass Capacity
• #300 Crucible: Heavy-wall clay-graphite construction with pouring spout
• Automatic Temperature Control: Maintains the temperature selected by the operator
• Digital Temperature Readout: Provides convenient monitoring throughout the melting process
• Tilting Furnace Design: Allows controlled pouring directly from the furnace
• Backing Winch: Provides precise movement and control during pouring
• Vented Latching Lid: Latches securely in the raised position for convenient access
• Insulating Firebrick Lining: Provides maximum heat retention and helps improve operating efficiency
• Heavy-Duty Construction: Designed for demanding industrial and production environments
• Electric Heating: Provides controlled heating without the need for a fuel-fired burner system
• Made in the USA

Specifications

Industrial High-Capacity Metal Melting

With an approximate 1,000 lb red brass capacity, the ProFire TL-300 is designed for significantly larger melting operations than conventional shop furnaces. Its combination of a massive #300 crucible, automatic temperature management, insulating firebrick lining, and controlled tilting system makes it well suited for industrial foundries and high-volume metal processing applications.

The backing winch provides greater control during pouring, while the heavy-wall crucible and heat-retaining furnace construction are designed to withstand the demands associated with large-volume melting.

Metal capacity will vary depending on the alloy and its density. The stated 1,000 lb capacity is based specifically on red brass.

Made to Order & Freight Shipping

The ProFire TL-300 is made to order. Please allow an approximate 1–2 week lead time for production.
