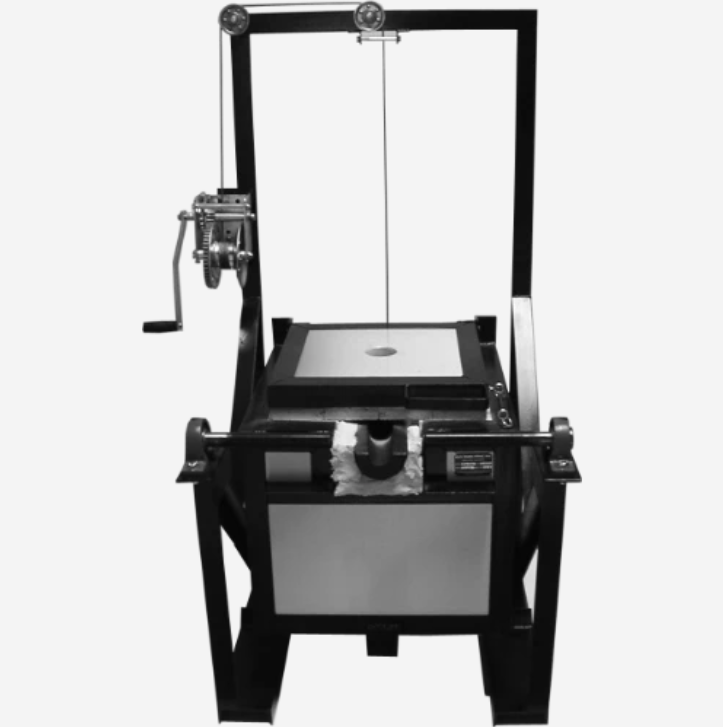

ProFire TL-150 Tilting Electric Crucible Furnace – 450 lb Red Brass Capacity
CALL OR EMAIL FOR PRICING
For current pricing and availability, please contact our sales team.
CALL (305) 814-1294 EMAIL US FOR PRICINGProFire TL-150 Tilting Electric Crucible Furnace – 450 lb Red Brass Capacity is out of stock and will ship as soon as it is back in stock.
ProFire TL-150 Tilting Electric Crucible Furnace – 450 lb Red Brass...
ProFire TL-150 Tilting Electric Crucible Furnace – 450 lb Red Brass Capacity
The ProFire TL-150 Tilting Electric Crucible Furnace is a heavy-duty, high-capacity melting furnace designed for foundries, metalworking facilities, jewelry production, refining operations, and other professional metal melting applications. With an approximate 450 lb red brass capacity, this industrial electric furnace provides the capacity and control required for large-volume melting and pouring operations.
Equipped with automatic temperature control and a digital readout, the furnace allows the operator to set and maintain the desired operating temperature for consistent melting performance. Its electric heating system eliminates the need for fuel-fired burners while providing controlled heat for a variety of non-ferrous metal applications.
The ProFire TL-150 utilizes a #150 heavy-wall clay-graphite crucible with an integrated pouring spout. Please note that the stated 450 lb capacity is based on red brass; actual weight capacity will vary depending on the density and type of metal being melted.
Controlled Tilting & Pouring
Designed with safety and pouring control in mind, the ProFire TL-150 features a tilting mechanism with a backing winch, allowing the operator to carefully control furnace movement during pouring.
The furnace is also equipped with a vented lid that securely latches in the raised position, providing convenient access to the crucible during loading and operation.
Key Features
- Approximate 450 lb Red Brass Capacity
- #150 Clay-Graphite Crucible: Heavy-wall construction with pouring spout
- Automatic Temperature Control: Maintains the temperature selected by the operator
- Digital Temperature Readout: Provides convenient monitoring during operation
- Tilting Pouring Design: Allows controlled pouring directly from the furnace
- Backing Winch: Provides precise control during the tilting and pouring process
- Vented Lid: Designed to latch securely in the raised position
- Insulating Firebrick Lining: Helps maximize heat retention and firing efficiency
- Heavy-Duty Construction: Designed for demanding professional and production environments
- Electric Operation: Provides controlled heating for non-ferrous metal melting
- Made in the USA
Specifications
| Specification | Details |
|---|---|
| Furnace Type | Tilting Electric Crucible Furnace |
| Crucible Size | #150 |
| Approx. Red Brass Capacity | 450 lbs. |
| Crucible Type | Heavy-Wall Clay-Graphite with Pouring Spout |
| Temperature Control | Automatic with Digital Readout |
| Pouring System | Tilting Furnace with Backing Winch |
| Lid | Vented, Latching Raised Position |
| Insulation | Insulating Firebrick Lining |
| Country of Manufacture | USA |
Professional High-Capacity Metal Melting
The ProFire TL-150 is an excellent choice for operations requiring substantially greater melting capacity than standard benchtop furnaces. Its combination of a large #150 crucible, automatic temperature management, heat-retaining insulation, and controlled tilting system makes it well suited for repetitive professional melting and pouring applications.
Metal capacity will vary by alloy and density. The stated 450 lb capacity is an approximate capacity when melting red brass.
Made to Order & Freight Shipping
The ProFire TL-150 is made to order. Please allow an approximate 1–2 week lead time for production.
