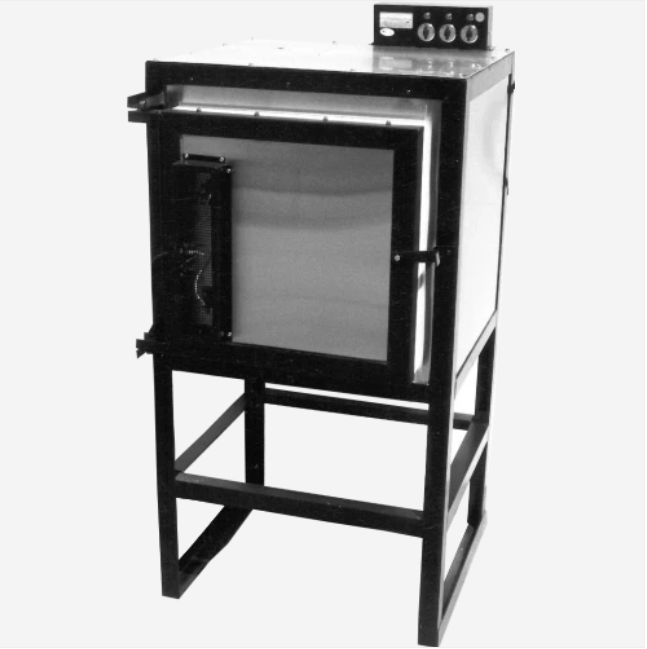

ProFire 50 High-Temperature Front-Loading Kiln

The ProFire 50 High-Temperature Front-Loading Kiln is a large-capacity, professional electric kiln designed for jewelry casting, lost-wax burnout, precious metal processing, assaying, metalworking, ceramics, laboratories, and other demanding high-temperature applications.

Featuring an expansive 20" W x 20" D x 20" H interior chamber, the ProFire 50 provides approximately 4.6 cubic feet of usable firing capacity, making it an excellent choice for professional shops and production environments that require considerably more space than a traditional tabletop kiln.

Capable of reaching temperatures up to 2300°F, this heavy-duty front-loading kiln delivers dependable high-temperature performance for extended firing cycles. Its combination of a spacious chamber, substantial insulation, and professional construction makes it suitable for demanding production and thermal-processing applications.

Large 20" x 20" x 20" Firing Chamber

The ProFire 50's large cubic chamber provides ample room for bigger projects, multiple pieces, casting flasks, refractory materials, crucibles, assay materials, ceramics, and other heat-resistant components.

With approximately 4.6 cu. ft. of interior capacity, this kiln bridges the gap between smaller studio furnaces and much larger industrial firing equipment.

The front-loading configuration also provides convenient access to the chamber, simplifying the loading and unloading of heavier or larger projects.

High-Temperature Performance Up to 2300°F

Engineered for demanding professional applications, the ProFire 50 reaches temperatures up to 2300°F. This high-temperature capability makes it a versatile solution for jewelry manufacturing, precious metal processing, lost-wax casting workflows, assaying, heat processing, ceramics, and numerous other applications.

Digital Temperature Control Options

The ProFire 50 is available with digital temperature control configurations to accommodate different firing requirements.

Digital Set & Readout Single Set Point Controller

The Digital Set & Readout Single Set Point Controller offers straightforward operation when your application requires reaching and maintaining a selected target temperature.

The digital interface provides convenient temperature monitoring while eliminating the complexity of programming a multi-stage firing schedule.

This configuration is ideal for users who want simple, dependable digital temperature control for routine high-temperature processes.

Digital Programmable Control

For applications requiring more advanced firing schedules, the Digital Programmable Control provides increased flexibility and automation.

This option is ideal for professional workflows requiring controlled heating cycles, temperature changes, holds, and repeatable firing schedules.

Key Features

• Maximum Temperature: Up to 2300°F

• Large-Capacity Chamber: Approximately 4.6 cu. ft.

• Interior Dimensions: 20" W x 20" D x 20" H

• Front-Loading Design: Provides convenient access for loading and unloading

• 240V Operation: Designed for demanding professional applications

• Heavy-Duty Construction: Suitable for production shops, laboratories, educational facilities, and industrial environments

• High-Temperature Capability: Designed for demanding firing and thermal-processing applications

• Digital Temperature Control: Available with Single Set Point or Programmable Digital Control

• Versatile Applications: Suitable for jewelry casting, lost-wax burnout, precious metals, assaying, metalworking, ceramics, and more

• Professional Capacity: Excellent for users who have outgrown smaller tabletop kilns

Specifications

Model: ProFire 50
Kiln Type: High-Temperature Front-Loading Electric Kiln
Maximum Temperature: 2300°F
Interior Dimensions: 20" W x 20" D x 20" H
Exterior Dimensions: Approximately 28" W x 30" D x 49" H
Chamber Capacity: Approximately 4.60 cu. ft.
Voltage: 240V
Approximate Weight: 420 lbs.

Controller Options:
Digital Set & Readout Single Set Point Controller
Digital Programmable Control

Professional Kiln for Casting, Assaying & High-Temperature Applications

The ProFire 50 is an excellent choice for professional jewelers, precious-metal refiners, casting operations, assay laboratories, metalworking facilities, ceramic studios, educational programs, and production environments requiring substantial high-temperature capacity.

Its combination of a 20" x 20" x 20" firing chamber, 2300°F maximum temperature, front-loading configuration, and digital control options provides the versatility required for both routine and demanding firing processes.

Whether you're processing precious metals, performing lost-wax burnout, assaying materials, firing ceramics, or handling other high-temperature projects, the ProFire 50 High-Temperature Front-Loading Kiln delivers the chamber capacity and professional performance required for serious production work.
