QuikMelt TableTop Furnace Sand Casting Set with 10 Lbs of Petrobond, Tongs, Crucible, Cast Iron Mold Flask, Parting Powder & Flux

Complete QuikMelt Metal Melting & Sand Casting Kit

The QuikMelt TableTop Furnace Sand Casting Set provides a complete foundation for melting metal, preparing sand molds, and producing your own castings. This upgraded kit includes 10 lbs of Petrobond Casting Sand, giving you additional molding material for larger projects, repeated castings, and continued workshop use.

Designed for jewelers, metalsmiths, casting professionals, small foundries, and hobbyists, this comprehensive metal melting and sand casting kit combines the TableTop QuikMelt Electric Melting Furnace with 10 lbs of Petrobond Casting Sand, a graphite crucible, crucible tongs, cast iron mold flask frame, parting powder, and flux.

The QuikMelt is available with multiple crucible capacity options, including 10, 30, 60, 100, and 120 troy ounces, allowing you to select the melting capacity that best fits your projects.

Whether you're creating jewelry, ingots, prototypes, decorative castings, or custom metal components, this all-in-one sand casting outfit brings together the primary equipment and materials needed to establish a versatile casting workstation.

What's Included

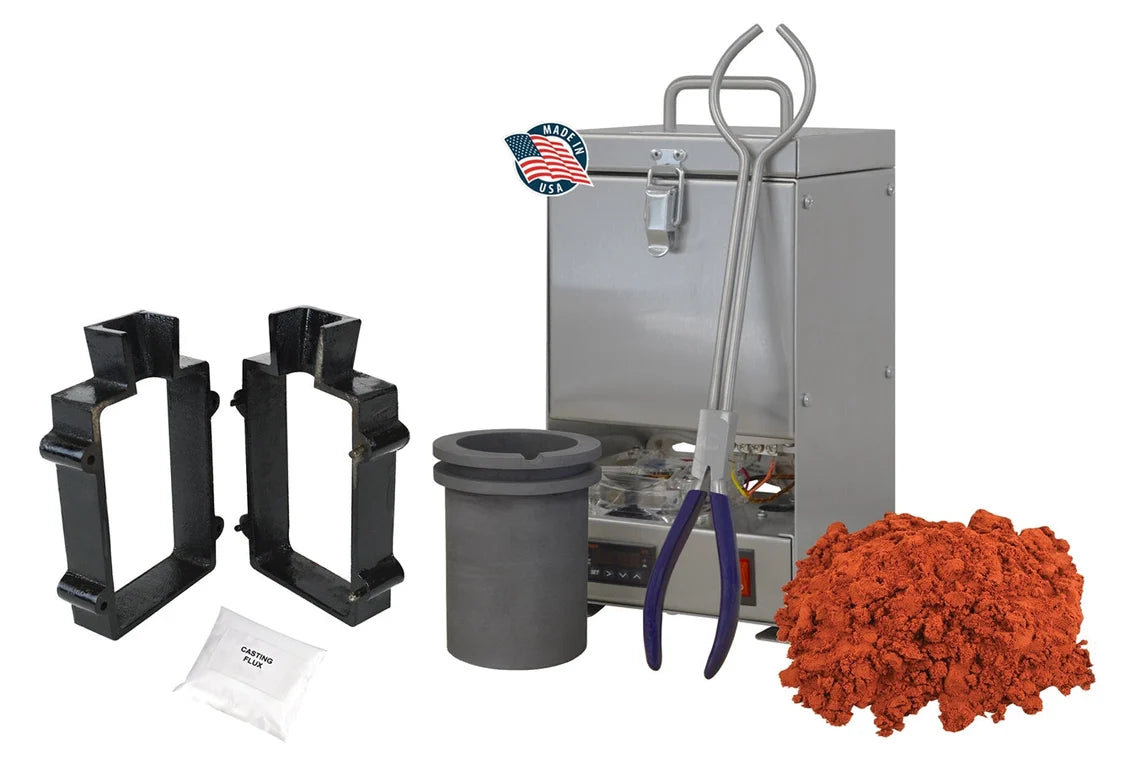

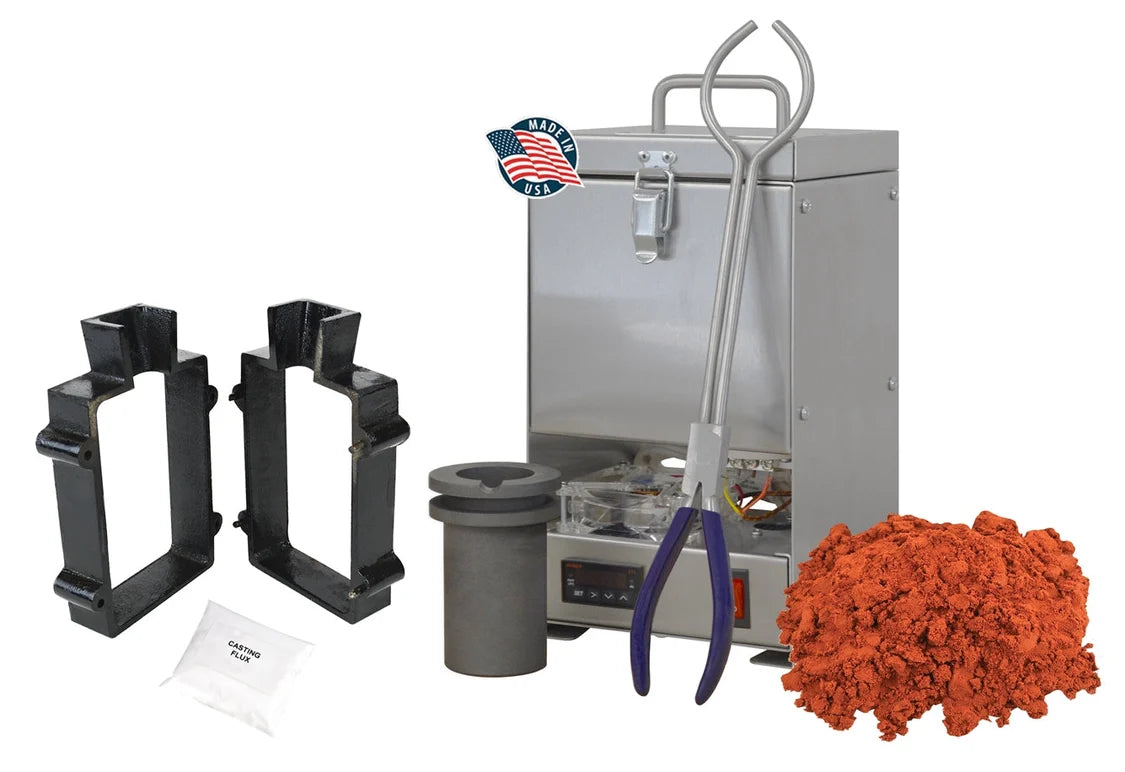

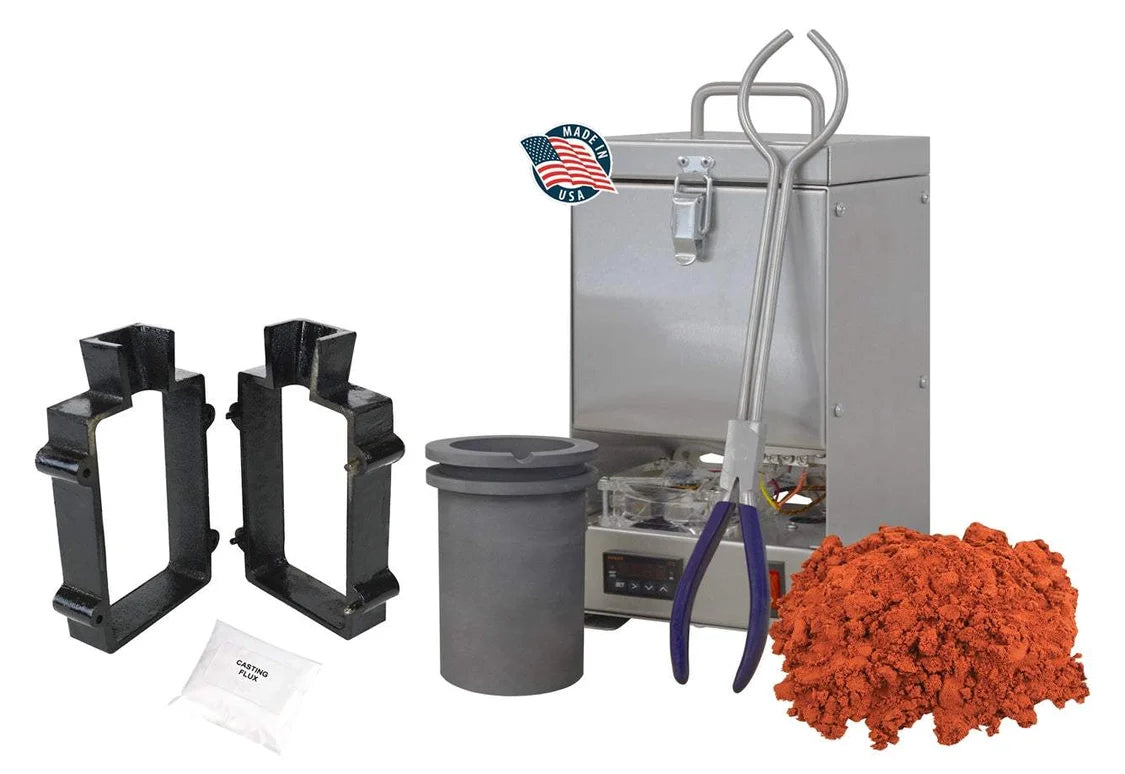

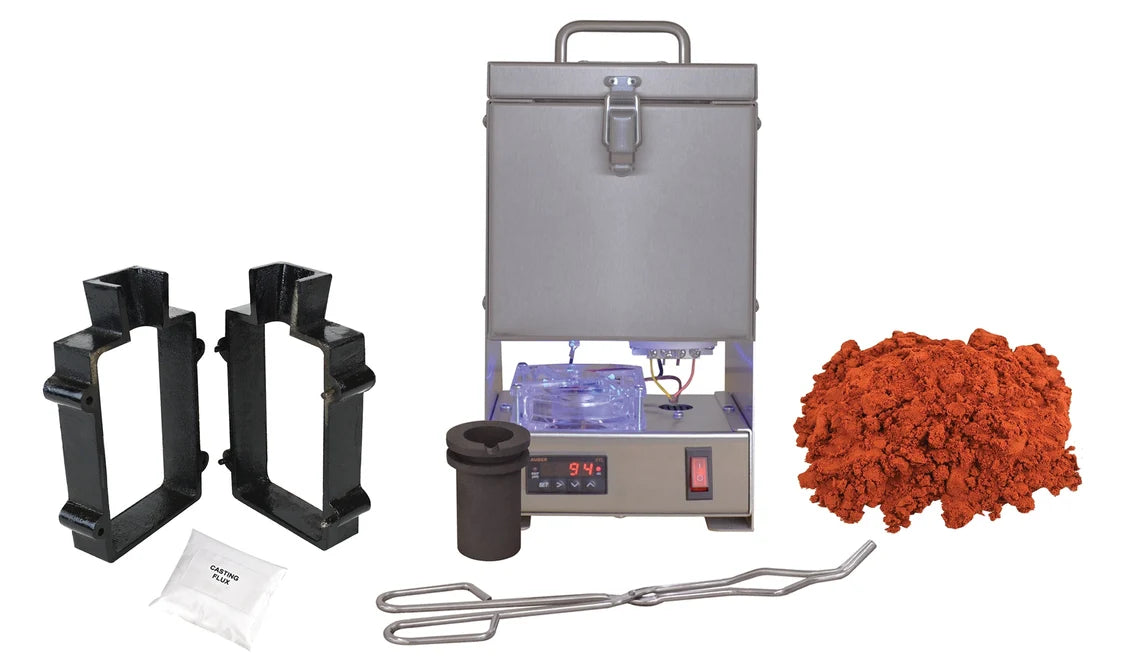

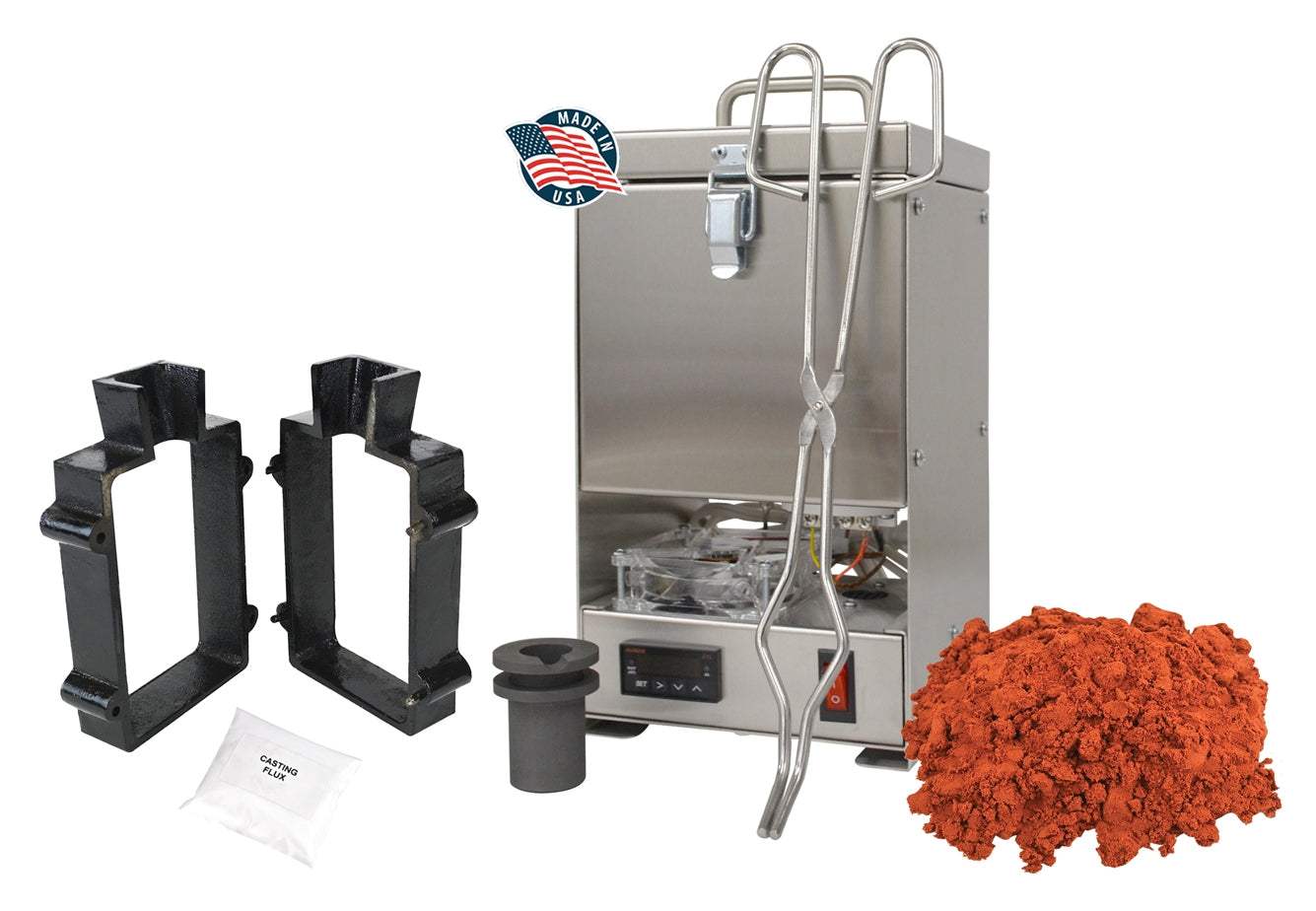

Your QuikMelt Sand Casting Set includes:

• TableTop QuikMelt Electric Melting Furnace
• 10 lbs of Petrobond Casting Sand
• Graphite Crucible
• Crucible Tongs
• Cast Iron Mold Flask Frame
• Parting Powder
• Casting Flux
• Corresponding Topper Flange for Selected Crucible Size

This combination provides the primary melting equipment, mold-making materials, and casting accessories needed for a variety of Petrobond sand casting applications.

TableTop QuikMelt Electric Melting Furnace

At the center of the kit is the TableTop QuikMelt Melting Furnace, a compact electric furnace designed for jewelry making, precious metal melting, sand casting, refining, ingot production, and general metalworking.

The QuikMelt features a powerful 1500-watt heating system, maximum operating temperatures up to 2200°F, and standard 110V operation.

Its convenient top-loading configuration provides direct access to the graphite crucible, while the compact furnace body allows the unit to fit comfortably into professional jewelry studios, workshops, classrooms, and smaller casting stations.

QuikMelt Furnace Features

• Maximum operating temperature up to 2200°F
• Powerful 1500-watt heating system
• 110V operation
• Approximate 8–10 minute heat-up time
• Durable stainless steel exterior
• Convenient top-loading design
• Compact tabletop footprint
• Designed for use with graphite crucibles
• Multiple available crucible capacities
• Interchangeable topper flange system
• Ideal for jewelry casting, sand casting, metal melting, and ingot production

Choose Your Crucible Capacity

The QuikMelt Sand Casting Set is available with five different graphite crucible capacity options, allowing you to select the configuration that best matches your typical melting requirements.

Available crucible capacities include:

• 10 Troy Ounce Graphite Crucible
• 30 Troy Ounce Graphite Crucible
• 60 Troy Ounce Graphite Crucible
• 100 Troy Ounce Graphite Crucible
• 120 Troy Ounce Graphite Crucible

This range provides flexibility for everything from smaller jewelry projects to larger metal melting and casting applications.

10 Troy Ounce Crucible

An excellent option for smaller jewelry projects, custom pieces, and lower-volume precious metal melting.

30 Troy Ounce Crucible

Provides additional capacity for jewelers and metalsmiths handling moderate casting batches.

60 Troy Ounce Crucible

A versatile mid-capacity option for professional jewelry casting, sand casting, and general metalworking applications.

100 Troy Ounce Crucible

Designed for larger melting batches, production work, refining, and projects requiring increased capacity.

120 Troy Ounce Crucible

The largest available QuikMelt crucible configuration for larger metal melting and casting applications.

Please Note: Crucible capacities are rated in troy ounces based on gold. Actual weight capacity will vary when melting silver or other metals because of differences in metal density.

Interchangeable Crucible & Topper Flange System

The QuikMelt furnace platform is designed to accommodate all five crucible capacities through its interchangeable topper flange system.

Each crucible size uses a different corresponding topper flange specifically sized for that crucible.

Available configurations include:

• 10 Troy Ounce Crucible with corresponding 10 oz topper flange
• 30 Troy Ounce Crucible with corresponding 30 oz topper flange
• 60 Troy Ounce Crucible with corresponding 60 oz topper flange
• 100 Troy Ounce Crucible with corresponding 100 oz topper flange
• 120 Troy Ounce Crucible with corresponding 120 oz topper flange

When changing crucible sizes, simply switch to the desired graphite crucible and install the matching topper flange for that size.

This interchangeable design gives you the flexibility to change melting capacities according to the project without requiring a completely separate QuikMelt furnace for each crucible size.

This Sand Casting Set includes the crucible and corresponding topper flange for the capacity selected at the time of purchase. Additional crucibles and their matching topper flanges may be purchased separately to expand the capacities available with your QuikMelt furnace.

10 Lbs of Petrobond Casting Sand

This upgraded kit includes 10 pounds of Petrobond Casting Sand, providing additional molding material for larger molds, repeated casting projects, and ongoing workshop use.

Petrobond is a prepared oil-bonded foundry sand commonly used for creating detailed sand casting molds. Its fine consistency makes it particularly useful for jewelry, decorative objects, prototypes, and smaller metal components where mold detail and surface quality are important.

Petrobond can be used for projects such as:

• Jewelry components
• Rings
• Pendants
• Coins and medallions
• Decorative castings
• Small metal parts
• Replicas
• Prototypes
• Ingots and bars
• Custom metal designs

Because Petrobond is an oil-bonded molding sand, it does not require the same water-based preparation used with traditional green sand.

Cast Iron Mold Flask Frame

The included cast iron mold flask frame provides the structure needed to prepare your Petrobond sand mold.

The flask holds the molding sand securely around your pattern while the impression is formed. Its two-part configuration allows the mold sections to be separated so the pattern can be carefully removed before the flask is reassembled for pouring.

This traditional molding method makes it possible to reproduce a wide range of compatible patterns and objects in cast metal.

Parting Powder

The kit also includes parting powder for preparing two-part sand molds.

Parting powder helps prevent the sections of the Petrobond mold from sticking together, allowing the mold halves to separate more easily while helping preserve the molded impression.

A light, even application can be used during mold preparation as appropriate for the casting process.

Graphite Crucible

Each QuikMelt Sand Casting Set includes a graphite crucible corresponding to the selected furnace capacity.

Graphite crucibles provide excellent high-temperature performance and are commonly used for melting precious and compatible non-ferrous metals in jewelry and casting applications.

Choose from:

10, 30, 60, 100, or 120 troy ounce capacity.

The appropriate topper flange corresponding to your selected crucible size is also included with the furnace configuration.

Crucible Tongs

The included crucible tongs provide the handling equipment needed to remove and control the hot crucible during the pouring process.

Once the metal reaches the appropriate pouring temperature, the crucible can be carefully removed from the QuikMelt and positioned over the prepared mold.

Always use appropriate high-temperature personal protective equipment and follow safe metal melting and casting procedures.

Casting Flux

Casting flux is included for use with compatible metals and melting applications.

Depending on the metal or alloy being processed, flux can assist during the melting process and help manage oxidation and impurities.

Always verify that the included flux is appropriate for the specific metal or alloy being melted and follow the recommended usage instructions.

From Petrobond Mold to Finished Casting

This QuikMelt Sand Casting Set brings the primary stages of traditional sand casting together in one convenient package.

A typical casting process may include:

1. Position your pattern in the cast iron mold flask.
2. Pack Petrobond Casting Sand firmly around the pattern.
3. Apply parting powder where required.
4. Prepare the second section of the sand mold.
5. Separate the flask and carefully remove the original pattern.
6. Prepare the appropriate pouring channels and vents.
7. Reassemble and secure the mold.
8. Place the appropriate metal into the QuikMelt graphite crucible.
9. Heat the metal to its required melting and pouring temperature.
10. Carefully remove the crucible using the appropriate tongs.
11. Pour the molten metal into the prepared Petrobond mold.
12. Allow the casting to cool appropriately before opening the mold and removing the finished piece.

Exact procedures, temperatures, and cooling times will vary depending on the metal, mold, pattern, and specific casting application.

Ideal for Jewelry & Metal Casting

The QuikMelt TableTop Furnace Sand Casting Set is ideal for:

• Jewelry making
• Gold casting
• Silver casting
• Precious metal casting
• Petrobond sand casting
• Ingot casting
• Custom jewelry production
• Rings and pendants
• Coins and medallions
• Decorative metal pieces
• Custom components
• Prototypes
• Small metal parts
• Metalsmithing projects
• Small foundry applications

Compact Tabletop Casting Setup

Despite its powerful high-temperature performance, the QuikMelt maintains a compact furnace body measuring approximately:

6" x 6" x 12"

The tabletop design allows the furnace to fit comfortably into a variety of professional and personal workspaces.

It is an excellent choice for:

• Professional jewelry studios
• Independent jewelers
• Metalsmiths
• Casting workshops
• Small foundries
• Educational environments
• Home workshops
• Advanced hobbyists
• Prototype shops
• Small-scale manufacturing

QuikMelt Furnace Specifications

Brand: TableTop Furnace Company
Product Type: Electric Metal Melting Furnace & Sand Casting Set
Maximum Furnace Temperature: 2200°F
Power: 1500 Watts
Voltage: 110V
Approximate Heat-Up Time: 8–10 Minutes
Furnace Body: Approximately 6" x 6" x 12"
Loading Configuration: Top Loading
Exterior: Stainless Steel
Crucible Type: Graphite
Available Crucible Capacities: 10, 30, 60, 100 & 120 Troy Ounces
Topper Flanges: Interchangeable, size-specific topper flange corresponding to each crucible capacity
Casting Sand: 10 lbs Petrobond
Primary Applications: Jewelry Casting, Petrobond Sand Casting, Gold & Silver Melting, Ingot Casting & General Metalworking

Why Choose the QuikMelt 10 Lb Petrobond Sand Casting Set?

The QuikMelt TableTop Furnace Sand Casting Set with 10 Lbs of Petrobond provides a convenient way to establish or expand a complete metal melting and sand casting workstation.

Instead of sourcing your primary casting equipment and supplies individually, this package combines the QuikMelt electric melting furnace, 10 lbs of Petrobond Casting Sand, graphite crucible, corresponding topper flange, crucible tongs, cast iron mold flask frame, parting powder, and flux.

The inclusion of 10 lbs of Petrobond provides additional molding material for larger or repeated casting projects, while the choice of 10, 30, 60, 100, or 120 troy ounce crucible configurations allows you to select the melting capacity that best fits your work.

The QuikMelt's interchangeable topper flange system provides even greater versatility. Each crucible size uses its own corresponding topper flange, allowing the furnace to be reconfigured for a different crucible capacity by switching both the crucible and matching flange.

Whether you're casting custom jewelry, creating prototypes, producing ingots, reproducing decorative objects, or building a small foundry operation, the QuikMelt TableTop Furnace Sand Casting Set provides the melting equipment, mold-making materials, and essential accessories needed to take your projects from pattern to finished metal casting.
